UNICUS Series
unicus-4i-2022 unicus-4s-2022

UNICUS Series

UNICUS

BAUER UNICUS 4i / 4S all-in-one high-pressure breathing-air workstations merge compression, purification, four-cylinder storage, cascade control and a triple-station containment fill cabinet into a footprint of less than 1 m², delivering 13 – 26 SCFM at 5000 / 6000 / 7000 psi.

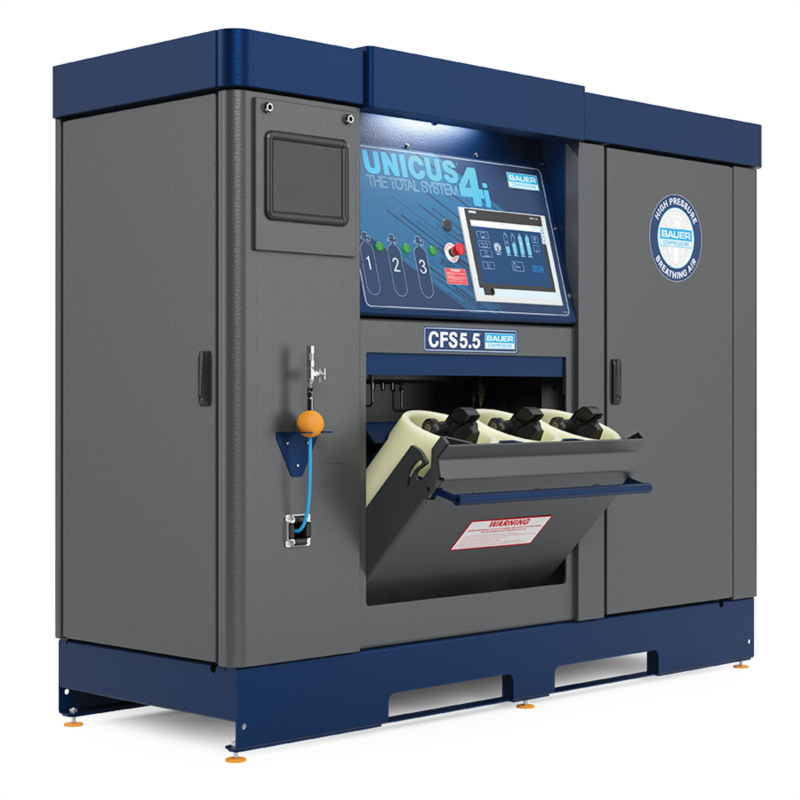

  • UNICUS 4i features a 15-inch HMI touch screen with solid-state Auto-Cascade™, reaches mission-ready status in five minutes and is available in a 7000 psi version—ideal for fire, marine and defense applications.

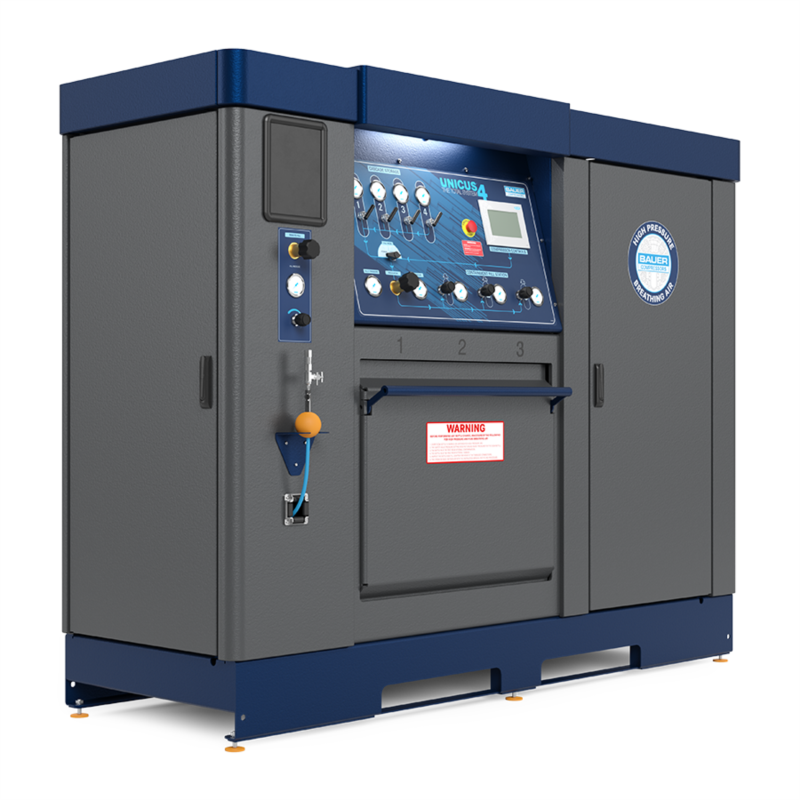

  • UNICUS 4S offers a PLC four-line text display with manual cascade and Snap-Pin™ tool-free doors plus a forward-tilt panel, making maintenance intuitive for petro-chem and industrial safety crews.
    Both models ship with a triple-station NFPA 1901:2016-certified cabinet and a B-SECURUS moisture-monitoring dryer, ensuring three ≤ 31″ SCBA / SCUBA cylinders are filled safely—even in extreme cold, sand or salt-spray environments.

Brand BAUER COMPRESSORS
MODELUNICUS

Specs & Materials

• Flow: 13 / 18 / 21 / 25 / 26.4 SCFM • Pressure: 5000 / 6000 / 7000 psi
• 4-stage (5-stage on select models) reciprocating blocks
• A6061-T6 cylinders, SUS-304 piping, four ASME storage tanks
• Auto-Cascade™ block rated at 7000 psi—upgrade-ready

Certification & Safety

• NFPA 1901:2016 triple-station cabinet • Low-oil / high-temp shutdown
• E-stop & NEMA 4 enclosure • Power-loss bypass; hoses ≥ 4 × WP

Weight & Ergonomics

• 101″ × 38″ × 80″ (2565 × 965 × 2023 mm) • 1.97 – 2.06 t
• Sound ≤ 78 dB(A) • Snap-Pin™ 60-s cartridge swap; 4S 12° tilt panel

Design Highlights

• 4i: 15″ HMI + Auto-Cascade™, key-fob login
• 4S: PLC text UI, manual valves
• B-SECURUS dryer + auto drain • Optional 100-ft hose reel in cabinet

Mission Scenarios

Fire-Ready-5 : Three SCBAs reach service pressure in five minutes.
Deck-Mount-Zero-Drill : 4i-25-E3 bolts to deck holes; 7000 psi air at sea.
Petro-24/7 : 4S with gas monitoring runs 365 days unattended.
CBRN-Task-Ahead : 100-ft reel keeps teams protected from the hot zone.
Future-Proof-RFID : Add BAUER CONNECT IoT & B-VIRUS FREE® for multi-role use.

Durability Rating

• Continuous duty 1300-1420 RPM, MTBF > 15 000 h
• Zero-leak solid-state valves rated 7000 psi
• Impact-tested steel frame & cabinet—built for cold, sand and salt-spray fronts
