Edge Beam Clamp Anchor 90MM-340MM
AFA930401 AFA930401

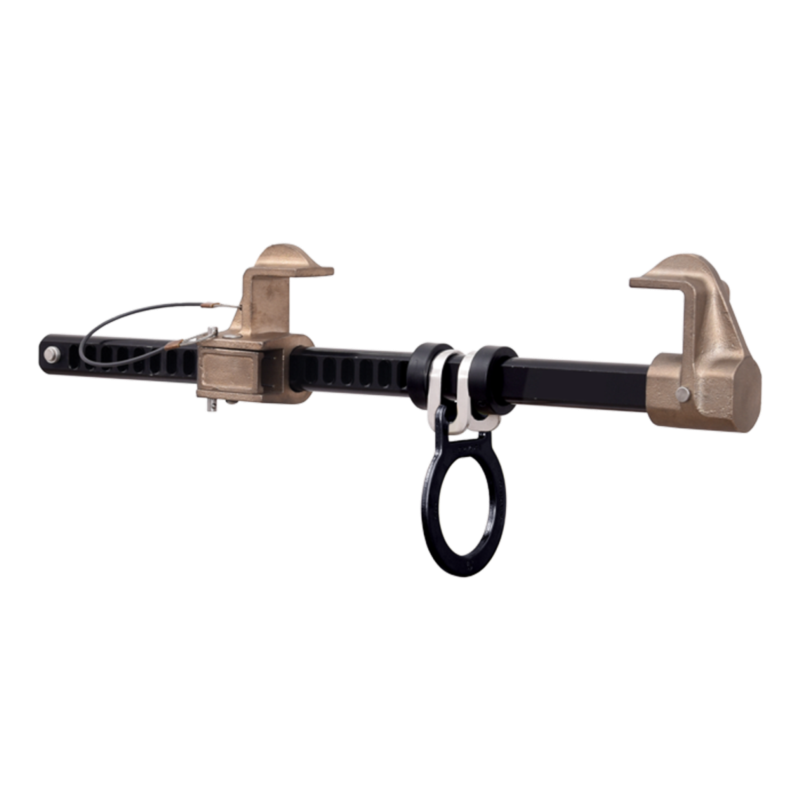

Edge Beam Clamp Anchor 90MM-340MM

AFA930401-Beam-Anchor-90mm-340mm-TDS AFA930401-AFA930411-AFA930412-AFA930413-UIM DOC-AFA930401

The KSTRONG AFA930401 Edge Beam Clamp Anchor is an adjustable anchorage device designed to fit structural beams from 90mm to 340mm wide.

Certified to EN 795:2012 Type B, this anchor is part of the KSTRONG anchorage series and is ideal for temporary or mobile anchorage solutions in elevated work environments.

Built from high-strength aluminum alloy, it features a rotating threaded spindle and integrated D-ring hook for fast, secure installation, ensuring maximum safety and efficiency in high-risk applications.

Brand KSTRONG UNRIVALED SAFETY
P/NAFA930401

Specifications and Material

  • Adjustable Width: 90mm to 340mm
  • Main Material: High-strength aluminum alloy with corrosion resistance
  • Connection Point: Built-in D-ring
  • Unit Weight: 2.55 kg

Certification & Safety Performance

  • Certification: EN 795:2012 Type B
  • Minimum Breaking Strength: 23 kN (Test Report Available)
  • Designed for single-user application within fall arrest systems

Weight & Ergonomics

  • Lightweight and portable
  • No tools required for adjustment or mounting

Design Features

  • Quick-action spindle for secure clamping
  • Integrated D-ring for direct attachment of lanyards or SRLs
  • Anodized finish for enhanced durability and corrosion resistance

Application Scenarios

  • Elevated steel structures and buildings
  • Factory and industrial maintenance work
  • Temporary anchorage points at job sites
  • Scaffolding and beam installations

Strength Rating

  • Rated for primary anchorage in fall arrest systems
  • Max user weight capacity: 140kg (including tools)
