Brute SRL (Wire Rope) 10 Meter with Steel Snap Hook
AFS-510010SE AFS-510010 AFS-510010SE

Brute SRL (Wire Rope) 10 Meter with Steel Snap Hook

BRUTE-STAINLESS-STEEL-FALL-ARREST-BLOCKS-TDS Brute-Retractable-Fall-Arrest-Blocks-UIM DOC-AFS510010SS BRUTE-WIRE-LEADING-EDGE-BLOCKS-TDS BRUTE-WIRE-LEADING-EDGE-BLOCKS-TDS

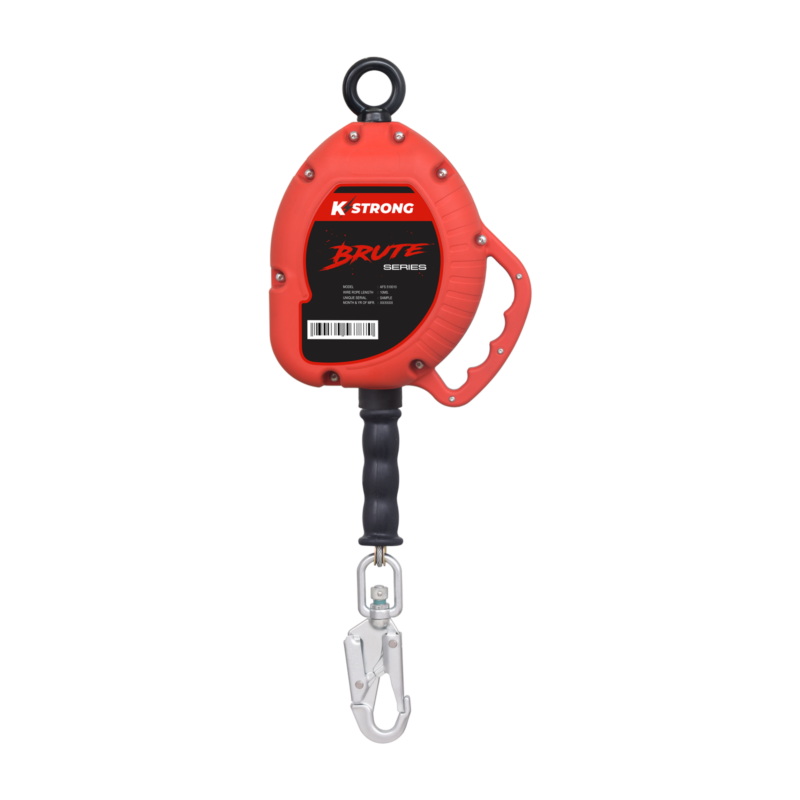

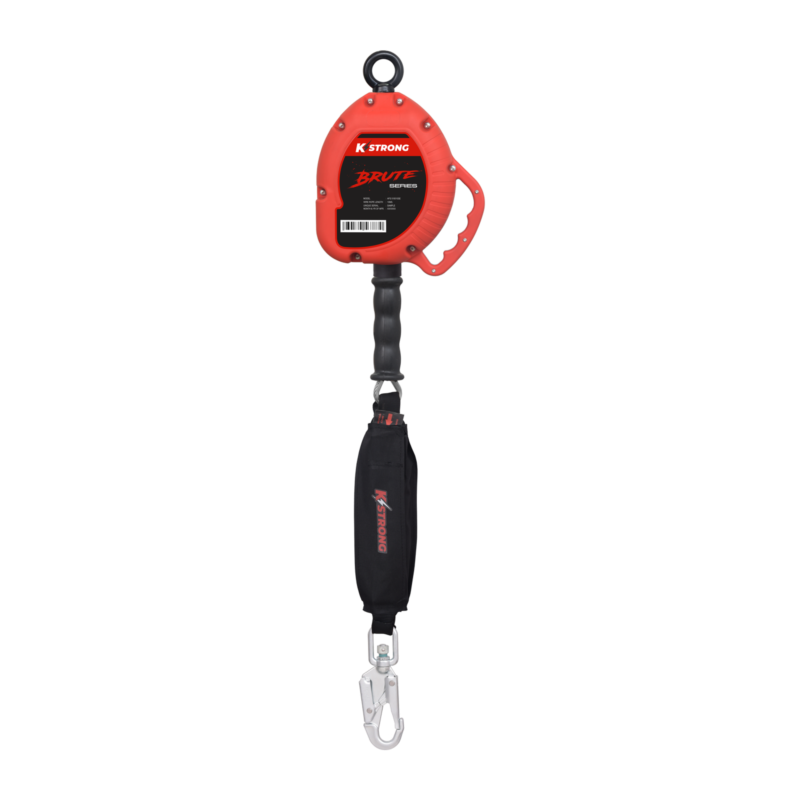

KSTRONG’s BRUTE series models AFS510010 (galvanized steel), AFS510010(SS) (stainless steel), and AFS510010SE (sharp edge rated) are 10-meter cable-type self-retracting lifelines equipped with swivel steel snap hooks and high-impact polymer housings.

Suitable for vertical and horizontal use, the SE variant is specifically engineered for leading-edge applications.

Fully compliant with EN 360:2002, VG11 RFU 11.060, and AS/NZS 1891.3 certifications, these SRLs deliver robust fall protection for elevated and industrial worksites, even in harsh or corrosive environments.

Brand KSTRONG UNRIVALED SAFETY
P/NAFS510010
P/NAFS510010（SS）
P/NAFS510010SE

Specifications & Materials

  • Cable Length: 10 meters
  • Cable Type: Ø4.5 mm galvanized steel (AFS510010), Ø4.5 mm stainless steel (AFS510010SS), Ø4.8 mm galvanized (AFS510010SE)
  • Housing: High-impact resistant polymer
  • Hook: Swivel steel snap hook with MBS 23 kN

Certification & Safety

  • Compliance: EN 360:2002
  • Additional: VG11 RFU 11.060 (AFS510010SS), AS/NZS 1891.3:2020 (AFS510010SE)
  • Maximum Arrest Force: < 6 kN
  • Maximum Arrest Distance: < 2 m
  • Test Load Capacity: 140 kg

Weight & Ergonomics

  • AFS510010: approx. 4.28 kg
  • AFS510010(SS): approx. 4.2 kg
  • AFS510010SE: approx. 4.48 kg
  • Lightweight housing with integrated carry handle

Design Features

  • Self-retracting wire rope with smooth retraction
  • Swivel snap hook prevents cable twisting
  • SE model reinforced for sharp-edge and horizontal use
  • SS model built for corrosion-prone environments

Application

  • Vertical fall arrest on scaffolding and construction sites
  • Leading-edge protection for sharp or horizontal surfaces (SE)
  • Ideal for offshore, telecom, marine, and chemical plants (SS)

Strength Rating

  • Cable MBS: 15 kN / Hook MBS: 23 kN
  • Arrest distance and force optimized for rapid stop and minimal impact
