Edge Parapet Anchor
AFA930101-SA-11-B AFA930101-SA-11-B (2)

Edge Parapet Anchor

AFA930101-Parapet-Anchor-60mm-360mm-TDS-SA11B AFA930101-UIM DOC-AFA930101

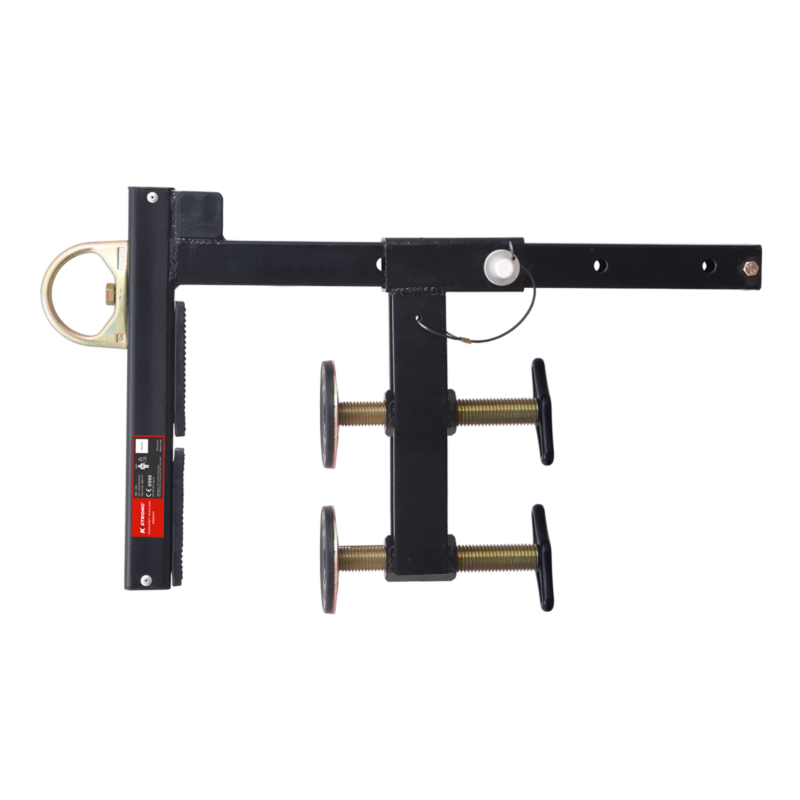

KSTRONG model AFA930101 is a professional-grade Edge Parapet Anchor specifically designed for temporary fall protection on building parapets and edge structures.

Belonging to the KSTRONG anchorage product series, it complies with EN795:2012 Type B standards and supports a wide parapet thickness range from 60mm to 360mm.

With a certified static strength of up to 15kN, this anchor system provides safe and reliable fall arrest solutions without damaging the structure.

KSTRONG, a globally trusted brand in fall protection, ensures fast installation and adjustable grip width, offering optimal flexibility and safety for workers operating at heights.

Brand KSTRONG UNRIVALED SAFETY
P/NAFA930101

Specifications & Materials

  • Applicable parapet thickness: 60mm to 360mm
  • Material: High-strength galvanized steel
  • Surface finish: Rust-resistant coating
  • Static strength: ≥15kN
  • Suitable for: Concrete and steel parapet structures

Certification & Safety

  • Complies with EN 795:2012 Type B
  • Tested for dynamic and static load performance
  • Certificate of Conformity and test report included per batch

Design Features

  • No structural penetration required for installation
  • Adjustable clamping range to fit various parapet sizes
  • Integrated D-ring provides secure attachment for lanyards or fall arrest systems

Application Scenarios

  • Edge construction on buildings
  • High-rise façade cleaning
  • Temporary fall arrest during steel structure maintenance
  • Rapid deployment on parapet-based systems
