AFT710007HD-Megapod-Tripod-7ft-For-2-Users

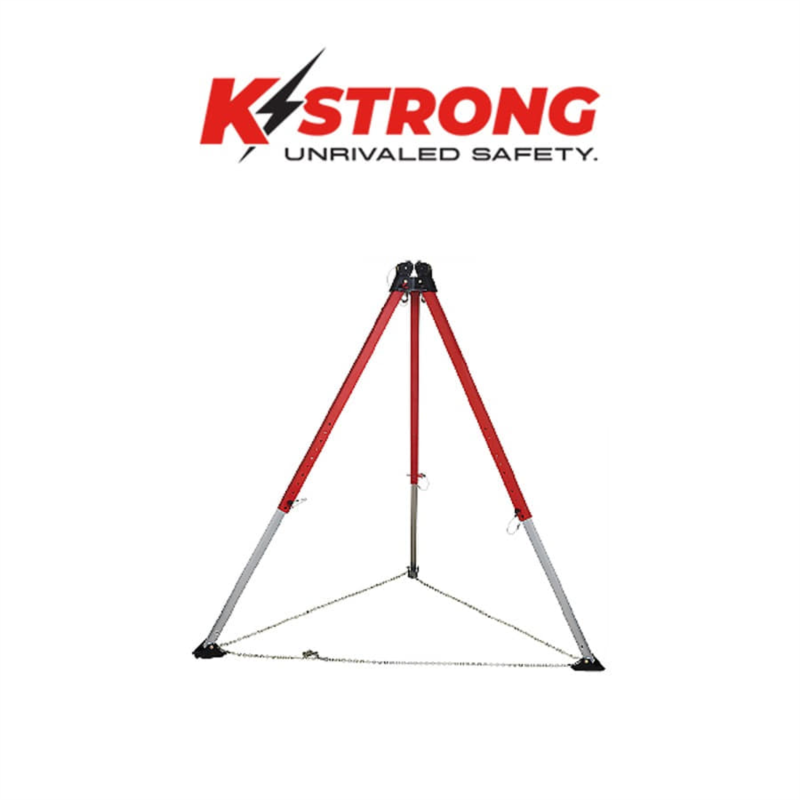

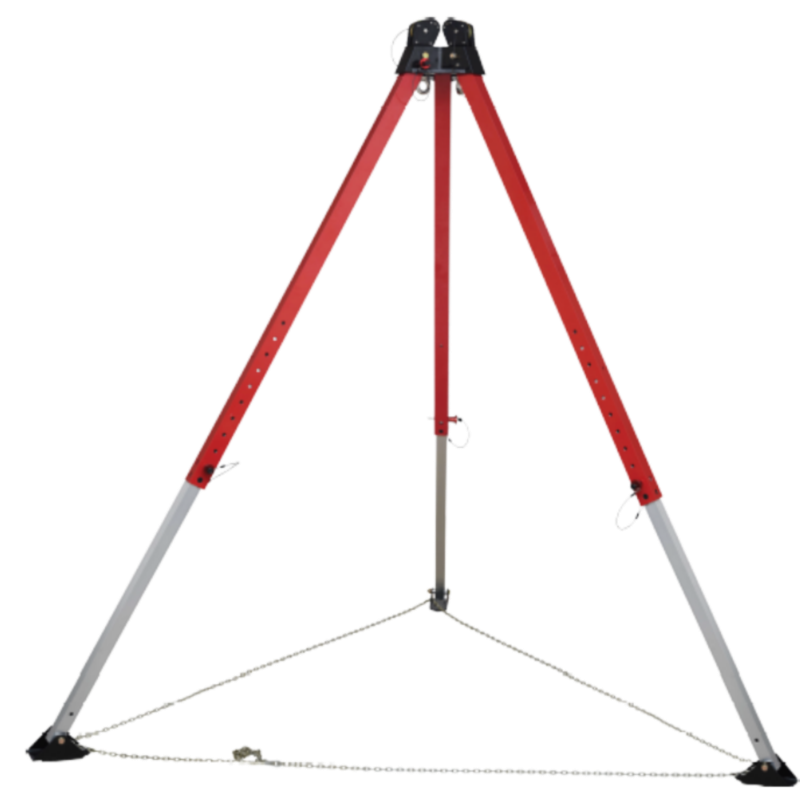

Megapod Tripod (7ft) For 2 Users

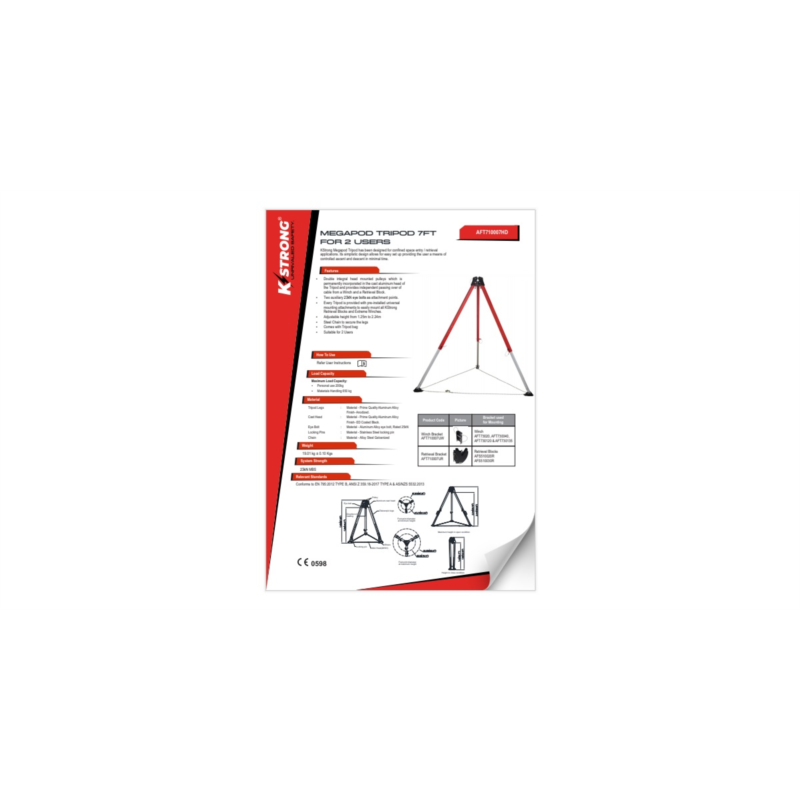

AFT710007HD-MEGAPOD-TRIPOD-7FT-TDS AFT710007HD-AFTZ100010HD-UIM DOC-AFT710007HD

Brand: KSTRONG | Model: AFT710007HD | Series: MEGAPOD EXTREME PLUS

The KSTRONG AFT710007HD Megapod Tripod is a robust and portable anchorage system designed for 2 users.

Ideal for confined space access and rescue operations such as manholes and tanks, it features adjustable aluminum telescopic legs, dual integral head-mounted pulleys, and pre-installed mounting brackets.

Certified to EN795:2012 TYPE B, ANSI Z359.18-2017 TYPE A, and AS/NZS 5532:2013 standards, it offers reliable fall protection with a maximum personal load of 200kg and a material handling capacity of 650kg.

Brand KSTRONG UNRIVALED SAFETY

P/NAFT710007HD

Product Description

Specifications & Materials

Adjustable Height: 1.25m to 2.24m
Closed Height: 1.3m
Materials:
- Legs & Body: Anodized Aluminum Alloy
- Cast Head: ED-Coated Aluminum Alloy
- Locking Pins: Stainless Steel
- Chain: Galvanized Alloy Steel
Weight: approx. 19.01 kg ± 0.10 kg

Certifications & Safety

EN795:2012 TYPE B (Static Strength 12kN)
AS/NZS 5532:2013 (Static Strength 21kN)
ANSI Z359.18-2017 TYPE A (MBS 23kN)
Passed dynamic performance tests with 100–150kg rigid weights

Weight & Portability

Lightweight tripod, easily installed by one person
Includes tripod carrying bag for convenience

Design Features

Dual integral head-mounted pulleys built into the cast aluminum head
Independently adjustable legs for use on uneven surfaces

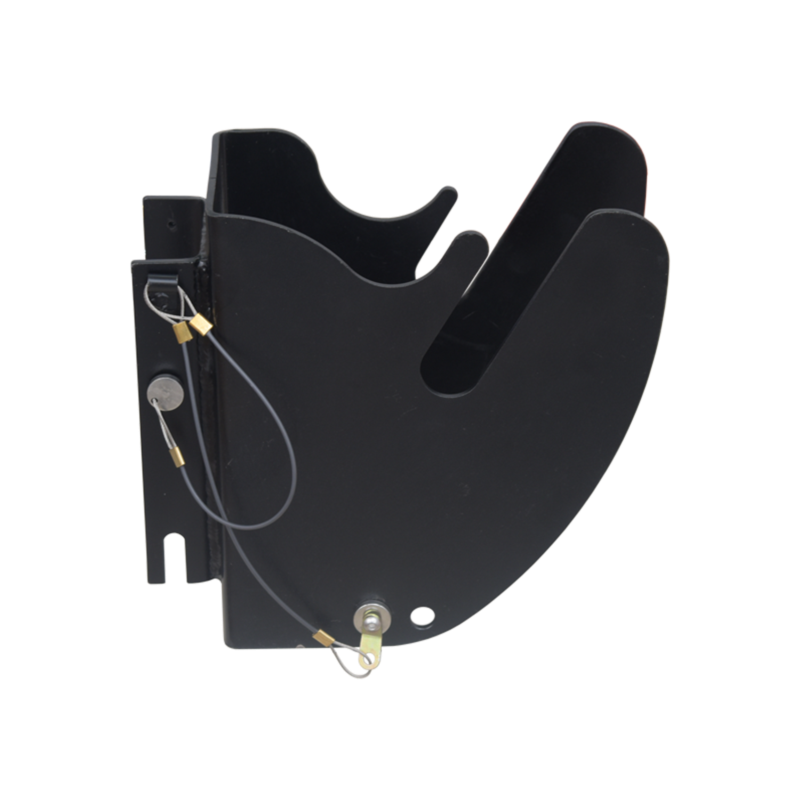

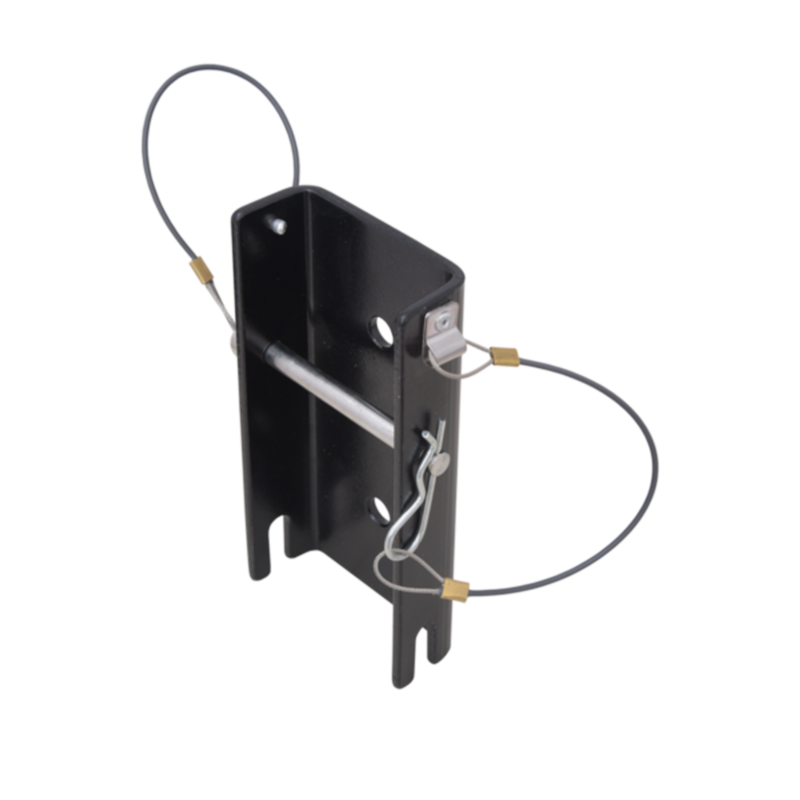

Pre-installed universal mounting brackets compatible with retrieval blocks and winches

Suitable Applications

Confined space entry and rescue (e.g., tanks, manholes, pipelines)
Vertical material handling or personnel lifting
Industries: Oil & Gas, Mining, Construction

Strength Rating

Max Personal Load: 200kg (2 users)
Max Material Handling Load: 650kg (vertical)
