Feather-Light, Rock-Solid — The Ultimate Protection Engineered for Extreme Heights.

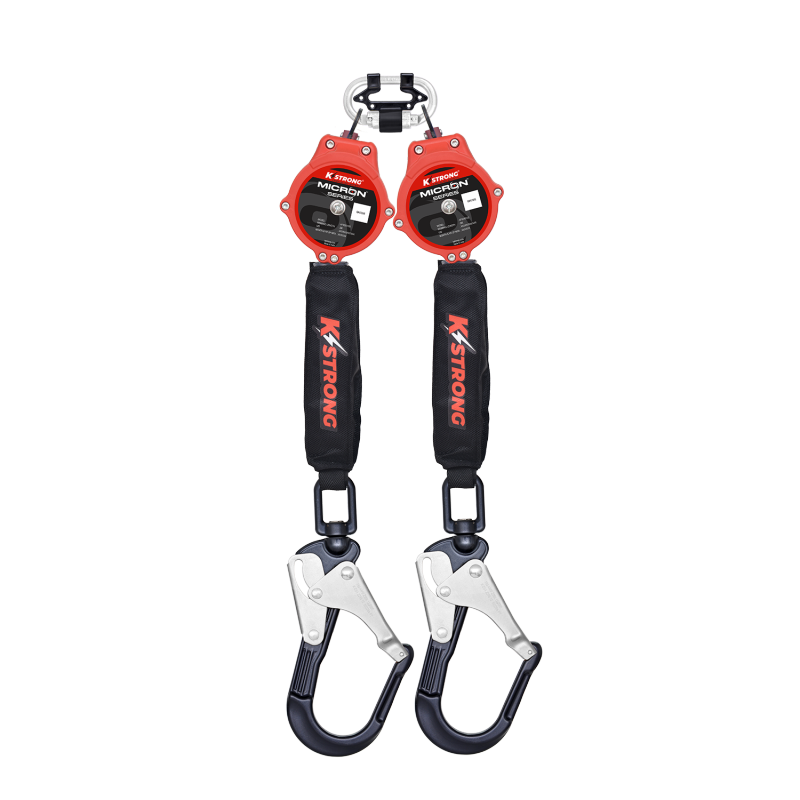

• An ultra-lightweight, dual-leg self-retracting lifeline (SRL) that provides 100% continuous tie-off fall protection.
• If you are a professional working on scaffolding, steel structures, rooftops, or in complex environments with sharp edges and demand lightweight gear with the highest safety standards, this is your best choice.
• It is one of the lightest SRLs available, boasting multiple top-tier certifications for FF2, horizontal, sharp edge, and ATEX use. It features Dyneema® webbing and a twin-pawl brake system for unmatched safety and performance.

Value & Benefits

• Maximize Mobility & Efficiency: The exceptionally lightweight design significantly reduces user fatigue, while the 360° swivel connector prevents webbing from twisting, allowing you to focus on the task, not the equipment.
• Conquer the Harshest Environments: Fully tested and approved for sharp edge and horizontal applications, it delivers the most reliable protection even on complex structures or with challenging foot-level anchor points.
• Absolute Safety Confidence: An advanced twin-pawl braking system ensures an immediate and stable lock-up the instant a fall occurs. The integrated energy absorber effectively limits impact forces to below 6kN, greatly reducing the risk of bodily harm.
• Excellent Return on Investment: A highly durable polymer housing and premium Dyneema® webbing grant it a 10-year product lifespan, providing your team with long-term cost-effectiveness and the most superior safety assurance.

Performance

• Maximum Rated Load: 140 kg (Vertical & Horizontal Use)
• Maximum Arrest Force: < 6.0 kN
• Arrest Distance: < 2.0 m
• Minimum Required Clearance: 4 m recommended
• Static Strength: > 15 kN
• Sharp Edge Rating: Suitable for edges with radius R ≥ 0.5 mm
• Fall Factor: Certified for FF2

Specifications

• Model: AFS550028D
• Product Type: Twin-Leg Self-Retracting Lifeline
• Webbing Material: Dyneema® (UHMWPE)
• Webbing Width: 21 mm
• Webbing Length: 2 m
• Housing Material: High-Impact Polymer
• Hooks: Aluminum ANSI Rebar Hook with Load Indicator
• Weight: 2.91 kg ± 0.05 kg
• Temperature Range: -30°C to +50°C

Certifications

• CE EN 360:2002
• AS/NZS 1891.3:2020
• VG11 RFU CNB/P/11.060 (Sharp Edge)
• ATEX 2014/34/EU (II 2G Ex h II T6 Gb)
• ANSI (Hooks are compliant)

Maintenance

• A full visual inspection should be conducted before each use.
• Clean with a cotton cloth or soft brush; for intensive cleaning, use a neutral detergent and warm water (25°C-50°C).
• Air dry naturally after cleaning, away from direct sunlight or heat sources.
• Must be periodically examined and recorded annually by a competent person.
• The product service life is 10 years from the date of manufacture.

Recommended Harness Connectors

• AFC609100
• AFC609101
• AFC609102
