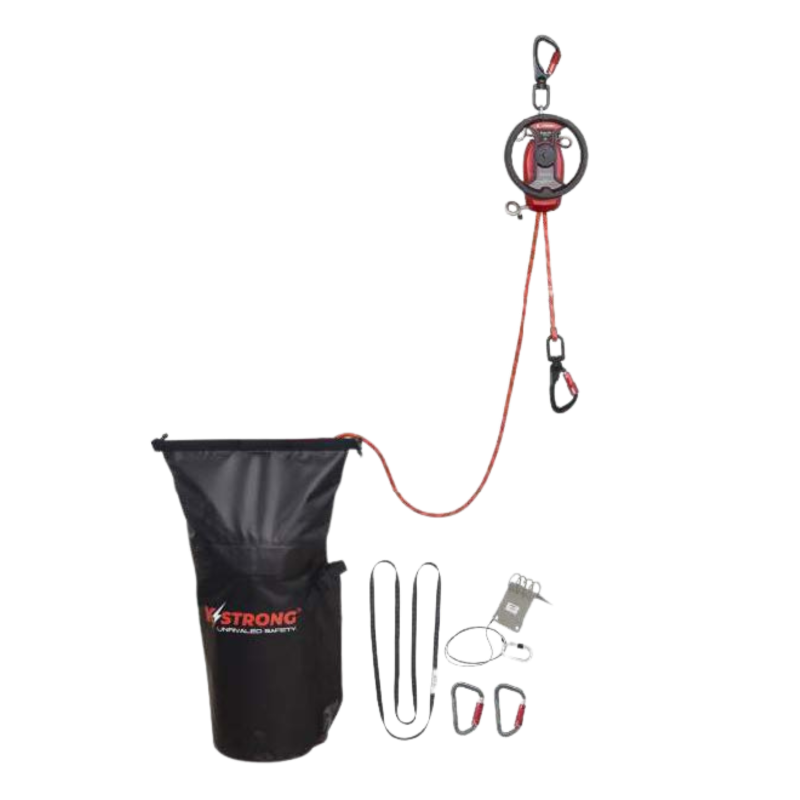

EVAC-R+ All-in-One Rescue Descender Kit
AFX209070_RESCUE-KIT

EVAC-R+ All-in-One Rescue Descender Kit

AFX209070_100M AFX209070-EVAC-R-UIM DOC-AFX209070

Engineered with Austrian precision, the KSTRONG EVAC-R+ is a multifunctional rescue and evacuation system designed for extreme environments. Its core identity is "Life Assurance Under Extreme Conditions." The value proposition is delivering intuitive, efficient, and unparalleled safety through a highly integrated descent, lifting, and rescue platform, backed by a failsafe redundant safety mechanism for industrial safety, fire rescue, and work-at-height professionals worldwide.

  • All-in-One Rescue Integration: Uniquely combines controlled descent, manual lifting, and power tool-assisted lifting capabilities, empowering teams to handle diverse and complex rescue scenarios with greater efficiency and success.
  • Ultimate Safety & Reliability: Features a redundant dual flywheel automatic braking system and is certified to top-tier global standards, including EN and ANSI. It supports a maximum working load of 300 kg, enabling the simultaneous evacuation of up to three people.
  • Efficient & Intuitive Operation: An innovative bidirectional shuttle system allows for continuous evacuation by descending alternately on both rope ends, making it a critical asset for rapid, multi-person rescues where every second counts.

Applicable Scope

  • Wind Energy: Nacelle and blade maintenance rescue
  • Oil & Gas: Offshore platform, derrick, and refinery emergency evacuation
  • Fire & Rescue: High-rise, deep shaft, and technical rescue operations
  • Confined Spaces: Vertical entry/egress and rescue from sewers, tanks, and silos
  • Industrial Maintenance: High-bay warehouses, bridges, cranes, and utility structures
  • Rope Access: Professional rope access and technical rescue applications
Brand KSTRONG UNRIVALED SAFETY
SKUAFX209070

The All-in-One Rescue & Evacuation Master for Extreme Environments, Where Safety is Unrivaled.

  • A professional-grade, multifunctional rescue device that integrates controlled descent, manual lifting, and power drill-assisted lifting, built for rescue and evacuation in extreme environments.
  • Absolutely. If you are part of an industrial rescue team, a fire department, or a professional technician in wind energy, oil & gas, construction, or confined spaces, the EVAC-R+ is your most reliable safety partner.
  • Its rare "bidirectional shuttle" function enables continuous multi-person evacuation; power drill compatibility allows for effortless lifting, saving critical energy; and a robust redundant braking system with a 3-person/300 kg capacity sets an unparalleled standard for safety.

Value & Benefits

  • Elevates Rescue Efficiency: Integrating descent and lifting functions with power tool support drastically reduces rescue time, maximizing the potential for life-saving outcomes within the golden hour.
  • Guarantees Personnel Safety: Certified to stringent international standards like EN 341, EN 1496, and ANSI Z359.4, its automatic redundant braking system provides double protection for both the rescuer and the casualty.
  • Reduces Operational Complexity: The automatically controlled descent speed and intuitive design minimize the risk of user error, even under the extreme stress of an emergency.
  • Enhances Application Flexibility: The bidirectional design is perfect for multi-person evacuations, while its lightweight body and 500-meter operating height allow it to adapt to diverse scenarios, from tall towers to deep shafts.
  • Optimizes Cost-Effectiveness: This multi-use device replaces several single-function tools, lowering initial procurement costs. Its durable Austrian engineering ensures a longer service life and reduced maintenance expenses.

Performance

  • Maximum Working Load: 300 kg (3 persons per EN / 2 persons per ANSI)
  • Minimum Working Load: 30 kg
  • Maximum Descent/Lifting Height: 500 m
  • Controlled Descent Speed: Approx. 1.0 m/s (at 85 kg load) to 1.5 m/s (at 170 kg load)
  • Braking System: Automatic, redundant dual flywheel brake system
  • Assisted Lifting: Compatible with cordless power drills
  • Operating Mode: Bidirectional rope design supports single-person descent and multi-person shuttle evacuations
  • Ambient Temperature Range: -40°C to +65°C

Specifications

  • Device Weight (without rope): 3.75 kg
  • Device Material: High-Strength Aluminum Alloy & Steel
  • Finish: Powder Coated
  • Compatible Rope (EN 341/1496, ANSI Z359.4): Ø10.5mm Kernmantle rope (conforms to EN 1891 A)
  • Compatible Rope (EN 12841): Ø9.6mm to Ø11mm Kernmantle rope (conforms to EN 1891 A)
  • Country of Origin: Austria / Europe

Certifications

  • EN 341:2011-1A (2 persons)
  • EN 341:2011-1B (3 persons)
  • EN 1496:2017-B (3 persons)
  • EN 12841:2006 Type C (1 person)
  • ANSI Z359.4:2013 (2 persons)

Maintenance

  • A visual and functional inspection should be conducted by the user before and after each use.
  • A thorough inspection and certification must be performed at least annually by KSTRONG or an authorized competent person, or after the maximum recommended descent distance has been reached.
  • All repairs may only be performed by KSTRONG or an authorized partner.

Kit Components

  • EVAC-R+ Device (AFX209070)
  • 10.5mm Kernmantle Rope (AFX2000105, 100m)
  • Webbing Anchor Slings 1.5M (AFA921515, 2x)
  • Aluminum Alloy Carabiners (UFC401400, 2x)
  • Rope Edge Protector (AFX203001)
  • Rescue Kit Bag (AFZ177150)
