WRANGLER 4-MAN HORIZONTAL LIFELINE SYSTEM
AFA940010

WRANGLER 4-MAN HORIZONTAL LIFELINE SYSTEM

AFA940010-TDS AFA940010-EN DOC-AFA940010

A rapidly deployable, portable temporary horizontal lifeline system designed for a four-person team. Its core value lies in providing exceptionally convenient, clear, and reliable fall protection for temporary work-at-height situations through a unique tension indicator and anti-twist design, ensuring every worker's safety.

  • 4-Person High-Efficiency Collaboration: Safely accommodates up to four users simultaneously, significantly boosting team coordination and productivity during work at height.
  • Precision Safety Tensioning: Features an exclusive integrated tension indicator, where a disc rotates freely to visually confirm when optimal safety tension is achieved, eliminating installation guesswork.

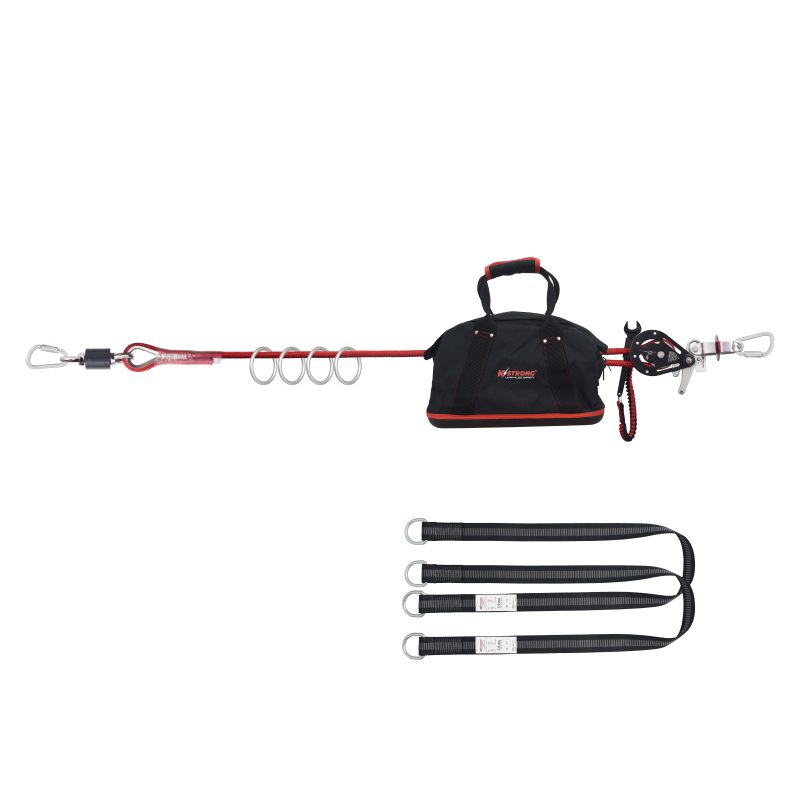

  • All-in-One Portable System: The complete kit, including a 16mm Kernmantle rope, tensioner, 4 steel O-rings, 2 anchor straps, and a durable carry bag, offers superior mobility and deployment speed.

Applicable Scope

  • Fall Arrest: Provides continuous fall arrest protection for a maximum of four users moving horizontally.
  • Restraint Systems: Can be used for restraint applications to prevent workers from reaching fall hazard zones.
  • Temporary Work at Height: Ideal for construction, structural installation, industrial maintenance, mining, and petrochemical sites requiring temporary horizontal anchorage.
  • Versatile Structural Anchoring: Secures to a variety of qualified structural anchors via the included cross-arm straps.
Brand KSTRONG UNRIVALED SAFETY
SKUAFA940010

The Unrivaled 25-Meter, Rapid-Deploy Temporary Horizontal Lifeline for Your Four-Person Team.

  • A professional, all-in-one portable Temporary Horizontal Lifeline (HLL) system that provides a secure 25-meter safety line for up to four workers at height.
  • If your team (up to 4 people) performs temporary work at height in construction, maintenance, or industrial settings without permanent anchors and needs a quickly installed, certifiably safe solution, this is for you.
  • It features a unique visual tension indicator to guarantee safe setup every time, a 360° swivel connector to prevent rope twist, and comes as a complete kit-in-a-bag for unmatched deployment speed and safety.

Value & Benefits

  • Maximize Team Productivity: Safely supports up to four workers at once, allowing teams to work in unison and significantly boosting job site efficiency.
  • Eliminate Installation Errors: The innovative tension indicator provides clear, visual confirmation of correct tension, minimizing the risk of human error during setup.
  • Exceptional Durability & Reliability: Built with a high-strength 16mm Kernmantle rope and a robust aluminum alloy and stainless steel tensioner for long-term durability in harsh industrial environments.
  • Ultimate Job Site Mobility: The entire system packs into a single, durable bag for easy transport, storage, and rapid deployment, perfectly suiting dynamic work environments.
  • Ensure Smooth & Safe Operation: A unique swivel connector prevents the lifeline from twisting during use, ensuring snag-free movement and enhancing both safety and ease of use.

Performance

  • Maximum User Capacity: 4 Persons
  • Maximum Span: 25 m (approx. 82 ft)
  • Minimum Span: 5 m (approx. 16.5 ft)
  • Minimum Breaking Strength (MBS): 25kN
  • Anchorage Structure Requirement: >18kN
  • Worker Capacity Range (incl. gear): 40-100 kg (approx. 88-220 lbs)

Specifications

  • Rope: 16 mm diameter Kernmantle Rope
  • Tensioner: Aluminum Alloy & Stainless Steel
  • O-Rings: 4 forged alloy steel rings, MBS 23kN
  • Connectors: Galvanized steel swivel connector and karabiners
  • Anchor Straps: Two 1.5 m polyester cross-arm straps (AFA920115), MBS 25kN
  • System Total Weight: 9.28 kg ± 0.10 kg (approx. 20.46 lbs)

Certifications

  • EN 795:2012 Type C
  • TS 16415:2013 Type C (for up to 4 users)

Maintenance

  • Pre-Use Check: A visual inspection must be conducted by the user before each use to check for defects like corrosion, deformation, wear, or illegible labels.
  • Periodic Inspection: A formal, documented inspection by a competent person authorized by the manufacturer is required at least every 6 months.
  • Post-Fall: If the system has been subjected to a fall arrest event, it must be immediately removed from service and retired.
  • Cleaning & Storage: Clean with mild soap and water, and air dry away from direct heat. Store in a dry, well-ventilated area away from chemicals, extreme temperatures, UV light, and sharp edges.
