Ultimate Stability, Dual-User Trust
KSTRONG MEGAPOD Sets the New Standard for Confined Space Rescue.

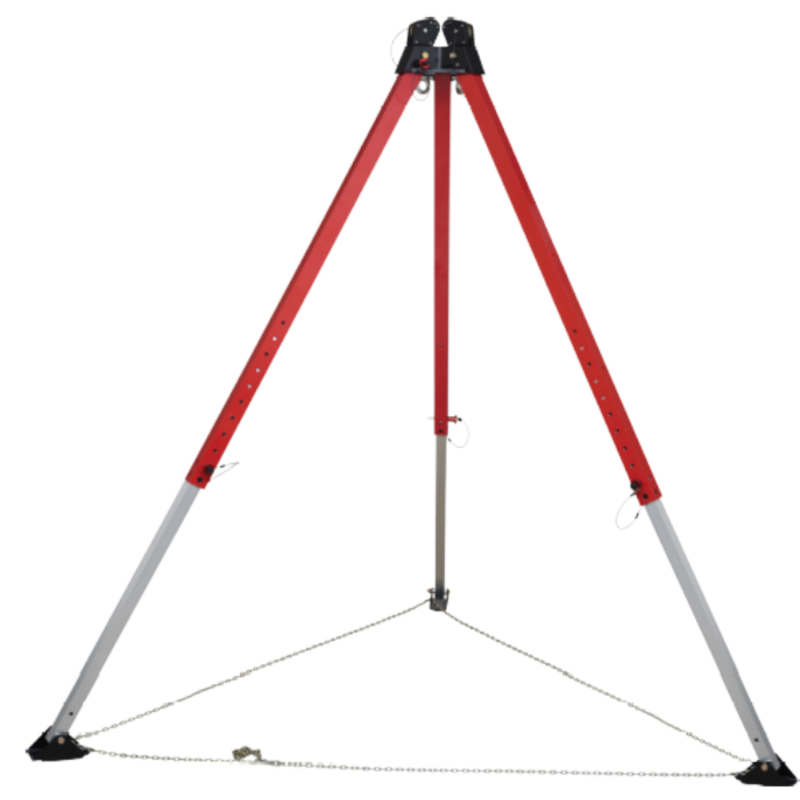

- A 7 ft. (2.24m) high-strength aluminum alloy rescue tripod designed for two-person operations, serving as your most reliable portable anchor system for confined space work.
- If your team performs entry, work, or emergency rescue in enclosed areas like manholes, tanks, or pipelines and must ensure the safety of two personnel simultaneously, the AFT710007HD is your ideal solution.
- It perfectly combines lightweight design, rapid deployment, and dual-user safety by integrating dual pulleys, universal device mounts, and holding multiple stringent certifications, including EN, ANSI, and ATEX for explosive atmospheres.
Value & Benefits
- Double the Efficiency, Double the Safety: A dual-user rating (200 kg) enables more efficient rescue and collaborative work, eliminating the need for two separate systems, saving valuable time and cost while ensuring each worker receives the same high level of protection.
- Extreme Environmental Adaptability: The lightweight aluminum structure and independently adjustable telescopic legs easily adapt to uneven ground. Its ATEX certification makes it suitable for high-risk explosive atmospheres like petrochemical sites, ensuring safe operation in any environment.

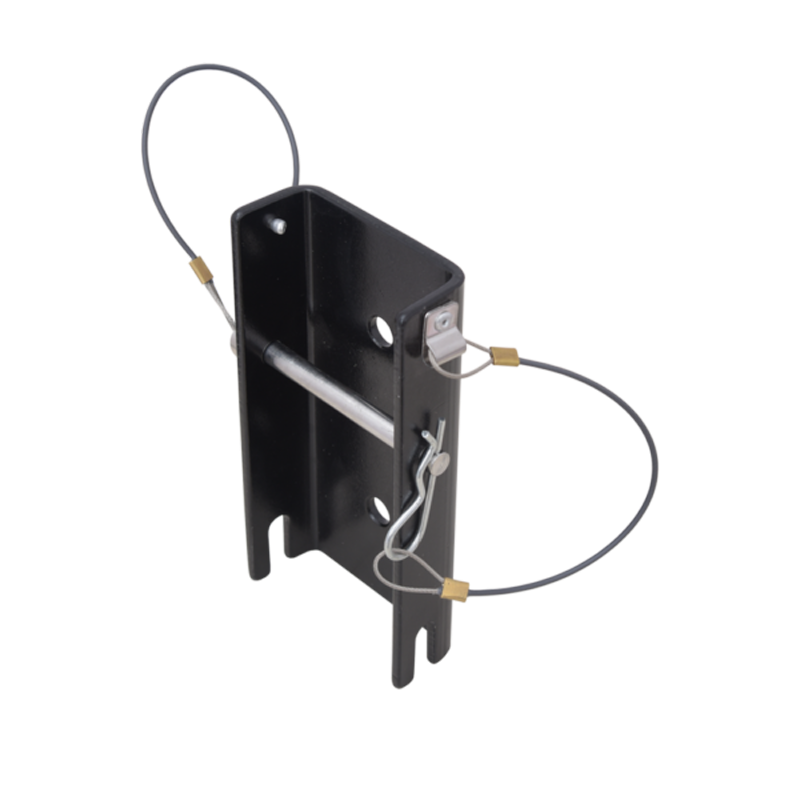

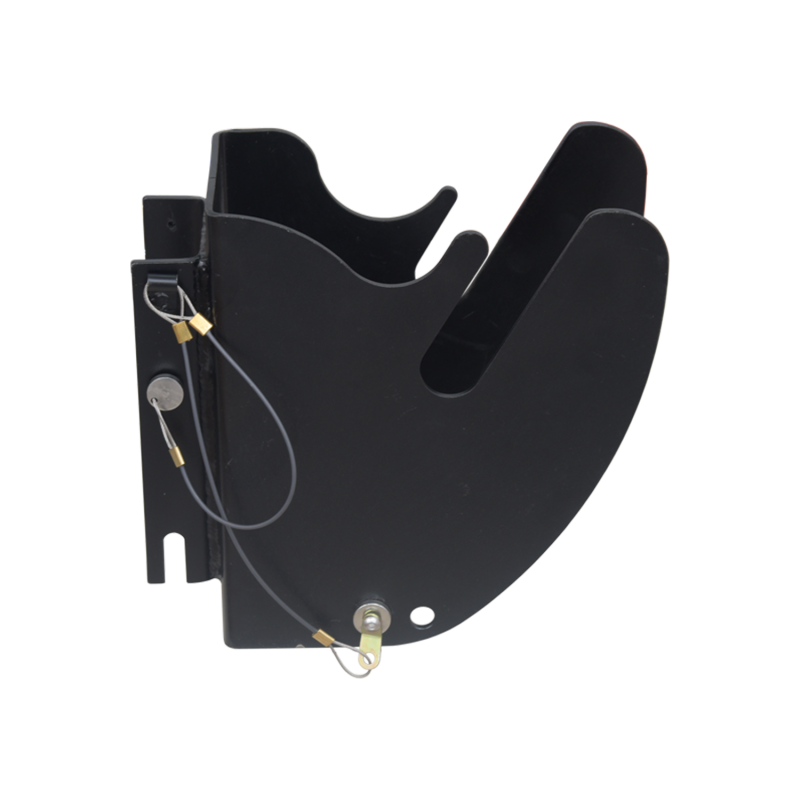

- Systematic Integration, Seamless Operation: The cast aluminum head's built-in dual pulleys prevent cable wear and entanglement. Pre-installed universal brackets facilitate the swift attachment of KSTRONG winches and retrieval SRLs, instantly creating a complete retrieval system for flawless operation.
- Rapid Response, Tactical Advantage: An intuitive quick-release locking pin design allows for tool-free setup and securing. In time-critical rescue scenarios, it buys you the golden minutes needed to save lives.
Performance
- Personnel Load Rating: 200 kg (440 lbs) (2 Users)
- Material Load Rating: 650 kg (1433 lbs)
- Minimum Breaking Strength (MBS): 23 kN (5170 lbf)
- Static Strength: Passed EN 795 (12kN / 3 min) & AS/NZS 5532 (21kN / 3 min) tests
- Dynamic Performance: Passed EN 795 (100 kg mass drop) & AS/NZS 5532 (150 kg mass drop) tests
- Corrosion Resistance: No corrosion after 48-hour salt spray test
- Explosion Protection Rating: ATEX II 2G Ex h llc T6 Gb
Specifications
- Model: AFT710007HD
- Adjustable Height: 1.25 m to 2.24 m (4.1 ft to 7.3 ft)
- Collapsed Height: 1.45 m (4.8 ft)
- Maximum Footprint Diameter: 2.0 m (6.6 ft)
- Weight: 19.01 kg (41.9 lbs) (± 0.10 kg)
- Material (Legs): High-Strength Aluminum Alloy, Anodized Finish
- Material (Head): Cast Aluminum, ED Coated Black Finish
- Material (Chain): Galvanized Alloy Steel
- Anchor Points: 2x Auxiliary Eye Bolts, 23kN rated
- Integrated Pulleys: 2
Certifications
- EN 795:2012 TYPE B
- AS/NZS 5532:2013
- ANSI Z 359.18-2017 TYPE A
- ATEX 2014/34/EU (EN 80079-36:2016, EN 80079-37:2016)
- CE 0598
Maintenance
- Pre-Use: Conduct a visual and functional inspection to ensure all locking pins, legs, head pulleys, and anchor points are free of damage or deformation.
- Cleaning: Clean with a cotton cloth or soft brush. For intensive cleaning, use a neutral detergent with warm water (not exceeding 60°C).
- Storage: Store in a well-ventilated, dry area away from chemicals and extreme temperatures. Use the original storage bag for transport and storage.
- Periodic Examination: A competent person must conduct a full inspection and record it at least every 12 months. The product has a 10-year lifespan from the date of manufacture.
