Mi-TIC 320
avon_mi-tic-320 avon_mi-tic-320

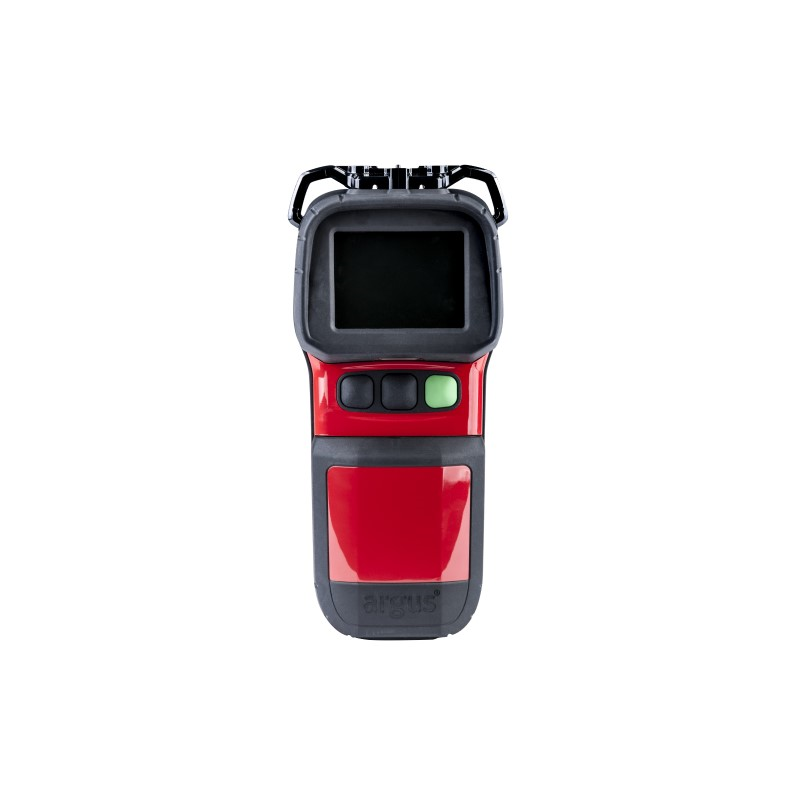

Mi-TIC 320

The Avon Protection Mi-TIC 320 is the smallest and lightest full-feature NFPA 1801-compliant firefighter thermal imaging camera available on the market today. Featuring a 320 × 240 high-resolution uncooled microbolometer sensor and a 2.7-inch high-brightness display, the entire unit weighs under 750g (1.65 lbs) with battery included. It is purpose-built for interior firefighting, search and rescue, confined space entry, and hazardous materials (HazMat) emergency response. Encased in a rugged IP67 waterproof and dustproof housing, the camera withstands extreme heat and high-impact drops. Equipped with multiple proprietary thermal color modes (such as Fire, Search & Rescue, Heat/Cold Finder) and onboard blackbox video recording, the Mi-TIC 320 enables firefighters to quickly identify victims, hidden hot spots, and structural collapse hazards in dense smoke and absolute darkness.

  • Ultra-Lightweight & NFPA 1801 Compliant: Weighs under 750g with battery, fully certified to NFPA 1801:2021 standards to maximize firefighter mobility and operational safety.
  • 320 × 240 High-Resolution Sensor & Wide Dynamic Range: High-sensitivity microbolometer measures temperatures up to 1100°C (2000°F) with dynamic gain control for optimal clarity through smoke.
  • Blackbox Video Recording & Safe LiFePO4 Battery: Features onboard video and image capture capabilities powered by long-life, high-safety Lithium Iron Phosphate battery technology with a self-guiding charger.

Scope of Application

  • Interior Firefighting & Search and Rescue: Rapidly locate trapped occupants, identify hidden seats of fire, detect flashover risks, and locate escape routes in smoke-filled buildings.
  • Urban Search & Rescue (USAR) & Confined Space Entry: Essential for structural collapse, vehicle extrication, and trench rescue to locate thermal signatures and victims.
  • HazMat & Industrial Safety Response: Detect chemical tank fluid levels, gas leak condensation points, electrical overheating, and industrial reaction states.
  • Marine & Mountain Nighttime Rescue: Coast Guard, water rescue, nighttime wilderness search, and border monitoring.
Brand AVON PROTECTION

Visionary Safety in Dense Smoke: Avon Mi-TIC 320 Smallest Full-Feature Firefighter Thermal Camera

  • Rapid Interior Search & Rescue: Lightweight design mounts effortlessly on turnout gear, instantly deploying to locate victims and crew members in zero-visibility smoke.
  • Flashover & Thermal Hazard Prevention: Monitors ceiling thermal buildup in real-time, switching dynamic temperature ranges to prevent flashover and backdraft incidents.
  • Post-Incident Investigation & Training: Automated blackbox recording logs entry operations for post-incident review, fire origin investigation, and training.

Value&Benefits

The Avon Mi-TIC 320 resolves the bulkiness and heat distortion common in legacy thermal imaging cameras. Leveraging decades of defense and safety engineering, Avon Protection provides a heat-resistant, impact-proof solution with exceptional dynamic range. Backed by factory warranty and support, it offers maximum ROI and safety for emergency services.

  • Accelerates Interior Search Operations: Ultra-compact form factor keeps hands free, allowing responders to move faster during critical rescue windows.
  • Reduces Firefighter Casualty Risks: Clear visualization of structural hazards, hidden heat sources, and exit routes ensures maximum operational safety.
  • Minimizes Maintenance & Training Overhead: Intuitive 3-button interface and durable LiFePO4 battery system reduce logistics and maintenance costs.

Performance

  • Sensor resolution of 320 × 240 with frame rates >25Hz for smooth real-time video playback.
  • Dynamic temperature measurement range reaching up to 1100°C (2000°F).
  • High-temp engineering polymer casing withstands 2m concrete drop impacts and IP67 submersion.

Specifications

  • Model: Mi-TIC 320 (320-3-A / Mi-TIC-320)
  • Sensor Type: 320 × 240 Uncooled Microbolometer
  • Display: 2.7-inch High-Brightness Color LCD
  • Weight: < 750g (1.65 lbs) with battery
  • Temperature Range: Up to 1100°C (2000°F)
  • IP Rating: IP67 Dustproof & Waterproof
  • Standards: NFPA 1801:2021 Compliant
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Operating Time: Approx. 3.5 to 4 hours (truck mount charger supported)
  • Operating Modes: Fire, Search & Rescue, Heat Finder, Cold Finder, HazMat
  • Controls & Storage: 3-button single-handed operation with onboard blackbox video storage
  • Warranty: Full factory warranty and technical support

Certifications

  • NFPA 1801:2021 Certified (Standard on Thermal Imagers for the Fire Service)
  • IP67 Ingress Protection Certified
  • CE Compliant
  • ANSI/ISA-12.12.01 Intrinsic Safety Compliant (optional depending on model variant)

Maintenance

  • Clean optical lenses and LCD screen regularly with soft wipes to prevent soot buildup.
  • Inspect battery contacts and charger docking terminals periodically to ensure proper conductivity.
  • Export blackbox video files and update firmware via USB connection during routine maintenance checks.

#Purpose-built personal thermal imager combining ultra-lightweight portability, NFPA compliance, and 320 × 240 resolution for frontline first responders.

#Premium visual assistance tool featuring high-sensitivity sensor, IP67 rugged enclosure, multi-mode imaging, and automated video recording.

#Eliminates heavy, complex, and failure-prone thermal cameras, delivering superior durability and low total cost of ownership (TCO) for fire department tenders.
