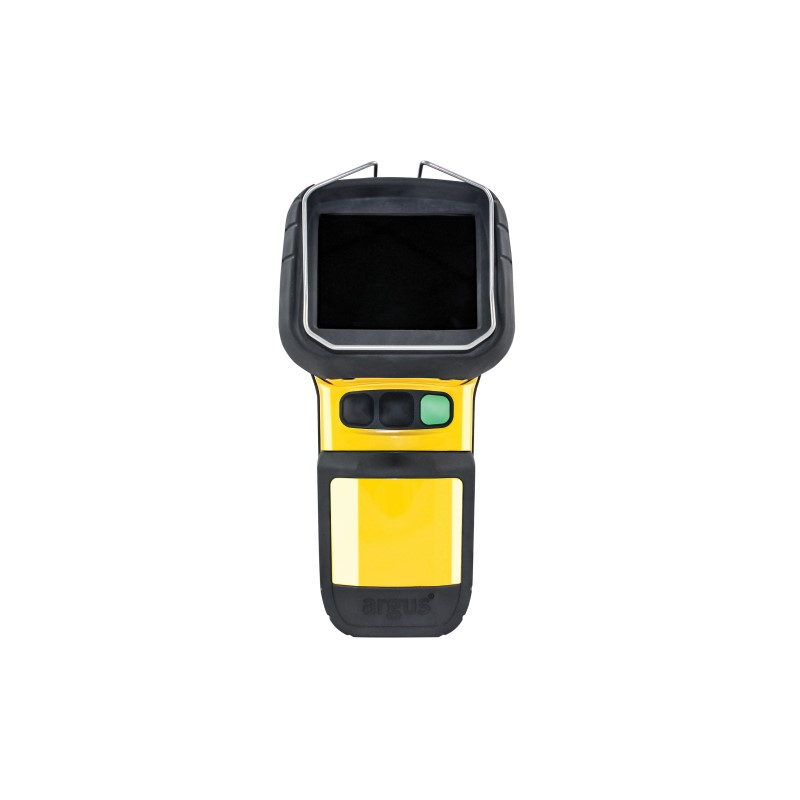

Mi-TIC E L
avonmi-tic-e-l avonmi-tic-e-l

Mi-TIC E L

The Avon Protection Mi-TIC E L is an expanded large-screen, lowest total cost of ownership (TCO) NFPA 1801-compliant firefighter thermal imaging camera. Designed for emergency services seeking enhanced situational awareness and wide fleet deployment, it features a prominent 3.5-inch high-brightness display. Weighing under 850g with battery included, the Mi-TIC E L delivers superior visual clarity through zero-visibility smoke, reducing optical strain during high-stress search and rescue operations. Built with a rugged IP67 waterproof enclosure and powered by safe, high-cycle Lithium Iron Phosphate (LiFePO4) battery technology, the Mi-TIC E L provides fire departments with an affordable, high-visibility thermal imaging solution that maximizes crew safety and operational efficiency.

  • 3.5-Inch Large Display Screen: Large format display provides a broader field of view and enhanced image clarity for rapid situational assessment.
  • Lowest Total Cost of Ownership (TCO) & NFPA Compliant: Certified to NFPA 1801:2021 standards, delivering premium large-screen thermal imaging performance at a highly cost-effective lifecycle cost.
  • IP67 Rugged Build & Safe LiFePO4 Battery: Engineered to withstand 2m concrete drop impacts, featuring long-life Lithium Iron Phosphate batteries and an intuitive 3-button interface.

Scope of Application

  • Fire Department Fleet Deployment: Ideal for equipping entire teams and vehicles with large-screen personal thermal vision.
  • Interior Firefighting & Hotspot Location: Faster navigation through dense smoke, locating trapped victims, and detecting hidden seats of fire and flashover risks.
  • Industrial Safety & Emergency Response: Large-scale thermal inspection, electrical fault checking, and emergency response in industrial facilities.
  • Urban Search & Rescue (USAR): Structural collapse, vehicle extrication, and trench rescue.
Brand AVON PROTECTION

Expanded Vision for Rapid Rescue: Avon Mi-TIC E L Large Screen Firefighter Thermal Camera

  • Enhanced Visual Clarity in Smoke: The 3.5-inch display allows responders to quickly interpret surroundings and victim positions without holding the camera close.
  • Team Coordination & Command Safety: The larger viewing angle allows team leads and crew members to view thermal feeds simultaneously for better tactical decisions.
  • Routine Inspection & Training: Simple, intuitive interface lowers training thresholds, making it ideal for daily drills and facility inspections.

Value&Benefits

The Avon Mi-TIC E L resolves the limitation of small displays and the high cost of legacy large-screen thermal cameras. Avon Protection combines defense-grade engineering with NFPA compliance into a wide-screen, budget-friendly format. Backed by factory support and durable components, it significantly lowers maintenance expenses while offering maximum visual performance.

  • Accelerates Incident Assessment: Large display reduces image interpretation time, allowing responders to act faster in critical moments.
  • Reduces Optical Fatigue & Crew Risk: Clearly visualizes scene details, exit routes, and thermal hazards to keep crew members safe.
  • Maximizes Investment Value: Combines wide-screen display advantages with low lifecycle costs to facilitate fleet-wide thermal imaging upgrades.

Performance

  • High frame rate (>25Hz) for real-time video output without motion lag.
  • Dynamic temperature measurement capability reaching up to 1100°C (2000°F).
  • High-temp engineering polymer housing withstands 2m drop impacts and IP67 water submersion.

Specifications

  • Model: Mi-TIC E L (Mi-TIC-E-L)
  • Sensor Type: Uncooled Microbolometer
  • Display: 3.5-inch High-Brightness Color Widescreen LCD
  • Weight: < 850g (1.87 lbs) with battery
  • Temperature Range: Up to 1100°C (2000°F)
  • IP Rating: IP67 Dustproof & Waterproof
  • Standards: NFPA 1801:2021 Compliant
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Operating Time: Approx. 3.5 to 4 hours (truck mount charger supported)
  • Operating Modes: Fire Mode, Search & Rescue Mode
  • Controls: 3-button single-handed interface
  • Warranty: Full factory warranty and technical support

Certifications

  • NFPA 1801:2021 Certified (Standard on Thermal Imagers for the Fire Service)
  • IP67 Ingress Protection Certified
  • CE Compliant

Maintenance

  • Clean the 3.5-inch LCD screen and optical lens regularly with soft wipes to prevent soot buildup.
  • Inspect battery contacts and charger terminal pins periodically to ensure solid conductivity.
  • Perform routine housing checks to ensure the IP67 seal is clean and intact.

#Purpose-built personal thermal imager combining an expanded 3.5-inch large display, high affordability, and NFPA compliance for first responders.

#Premium visual assistance tool featuring high-sensitivity thermal sensor, 3.5" widescreen display, IP67 rugged casing, and long-life battery.

#Eliminates the strain of small screens while maintaining low total cost of ownership (TCO), making it the ideal choice for department-wide upgrades.
