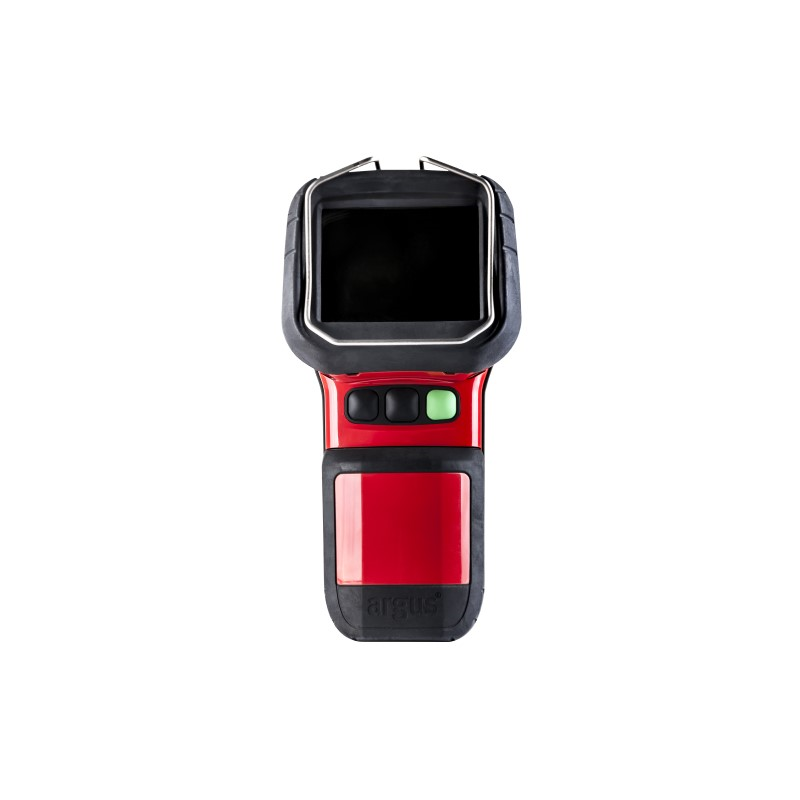

Mi-TIC S

The Avon Protection Mi-TIC S is the premium, best-in-class feature set thermal imaging camera engineered for incident commanders, tactical leaders, and Urban Search and Rescue (USAR) specialists. Featuring a $320 \times 240$ high-resolution uncooled microbolometer sensor and an expanded 3.5-inch high-brightness display, the Mi-TIC S weighs under $870\text{g}$ with battery included while fully complying with NFPA 1801:2021 standards. Equipped with advanced tactical enhancements including an integrated laser pointer, electronic compass, digital zoom, dynamic thermal range up to $1100^\circ\text{C}$ ($2000^\circ\text{F}$), and full blackbox video and image recording, the Mi-TIC S provides unparalleled situational awareness, precise target identification, and enhanced command safety in extreme firefighting conditions.

Best-in-Class Feature Set: Integrates a laser pointer, electronic compass, digital zoom, heat/cold finder, and multiple thermal modes for maximum tactical analysis.
3.5-Inch Widescreen & NFPA 1801 Compliant: Large-format high-brightness LCD display encased in a rugged IP67 waterproof housing weighing under $870\text{g}$.
Blackbox Video Recording & Safe LiFePO4 Battery: Full digital video and image capture capabilities powered by long-life Lithium Iron Phosphate battery technology with truck-mount charging support.

Scope of Application

Incident Command & Tactical Team Leading: Essential for incident commanders and crew leaders to assess fire dynamics, direct firefighters via laser pointer, and guide emergency evacuations.
Urban Search & Rescue (USAR): Navigation via electronic compass, assessing structural collapse hazards, and pinpointing trapped occupants in vehicle extrication.
HazMat & Industrial Safety Operations: Distance identification of chemical tank levels, gas condensation points, and thermal reactions using dedicated HazMat mode and laser pointer.
Post-Incident Investigation & Training: Export onboard blackbox video logs and high-res images for fire origin investigation, judicial evidence, and training scenarios.

Brand AVON PROTECTION

Product Description

The Flagship Benchmark in Fire Command: Avon Mi-TIC S Best-in-Class Thermal Camera

Precision Tactical Direction: Combined laser pointer and electronic compass allow team leads to mark hazards and direct search routes instantly in zero-visibility smoke.
Thermal Hazard & Flashover Warning: Real-time temperature monitoring up to $1100^\circ\text{C}$ with heat/cold tracking to prevent backdraft and flashover occurrences.
Digital Evidence & Training Asset: Automated video and photo recording logs entry operations for post-incident review, origin investigation, and crew training.

Value&Benefits

The Avon Mi-TIC S represents the pinnacle of firefighting thermal imaging technology. Avon Protection combines military-grade optical sensing, electronic compassing, and laser guidance into an NFPA-certified, ultra-durable housing. Designed to empower command personnel in the most hazardous environments, it delivers maximum operational value and long-term return on investment for fire agencies.

Accelerates Command Decision Making: Integrated laser pointer and electronic compass streamline tactical communication and speed up rescue actions.
Maximizes Rescue Safety: Multi-mode thermal imaging and instant temperature reading defend against collapse, flashover, and disoriented crew risks.
Streamlines Digital Asset Management: Built-in video and image recording seamlessly support post-incident analysis and training requirements.

Performance

Sensor resolution of $320 \times 240$ with frame rates $>25\text{Hz}$ for smooth real-time playback without lag.
Dynamic temperature measurement range reaching up to $1100^\circ\text{C}$ ($2000^\circ\text{F}$) with digital zoom capability.
High-temp engineering polymer casing withstands $2\text{m}$ concrete drop impacts and IP67 submersion.

Specifications

Model: Mi-TIC S (320-3-S / Mi-TIC-S)
Sensor Type: $320 \times 240$ Uncooled Microbolometer
Display: 3.5-inch High-Brightness Color Widescreen LCD
Weight: $< 870\text{g}$ ($1.91\text{ lbs}$) with battery
Temperature Range: Up to $1100^\circ\text{C}$ ($2000^\circ\text{F}$)
Tactical Features: Integrated Laser Pointer, Electronic Compass, Digital Zoom
IP Rating: IP67 Dustproof & Waterproof
Standards: NFPA 1801:2021 Compliant
Battery Type: Lithium Iron Phosphate (LiFePO4)
Operating Time: Approx. 3.5 to 4 hours (truck mount charger supported)
Operating Modes: Fire, Search & Rescue, Heat Finder, Cold Finder, HazMat
Controls & Storage: 3-button single-handed operation with onboard video and image storage
Warranty: Full factory warranty and technical support

Certifications

NFPA 1801:2021 Certified (Standard on Thermal Imagers for the Fire Service)
IP67 Ingress Protection Certified
CE Compliant
ANSI/ISA-12.12.01 Intrinsic Safety Compliant (optional depending on variant)

Maintenance

Clean optical lenses, laser emitter window, and LCD screen regularly with soft wipes to prevent soot buildup.
Inspect battery contacts and charger terminal pins periodically to ensure solid electrical contact.
Export blackbox video files and update firmware via USB connection during routine maintenance checks.
