Extreme TYPE B Winch 20M
AFT730042SS-Extreme-TYPE-B-Winch-20m AFT730042-Extreme-TYPE-B-Winch-20m

Extreme TYPE B Winch 20M

AFT730042_EXTREME_TYPE_B_WINCH_20M_TDS BRUTE-WINCHES-UIM DOC-AFT730040 AFT730042SS_EXTREME_TYPE_B_WINCH_20M_TDS BRUTE-WINCHES-UIM DOC-AFT730040

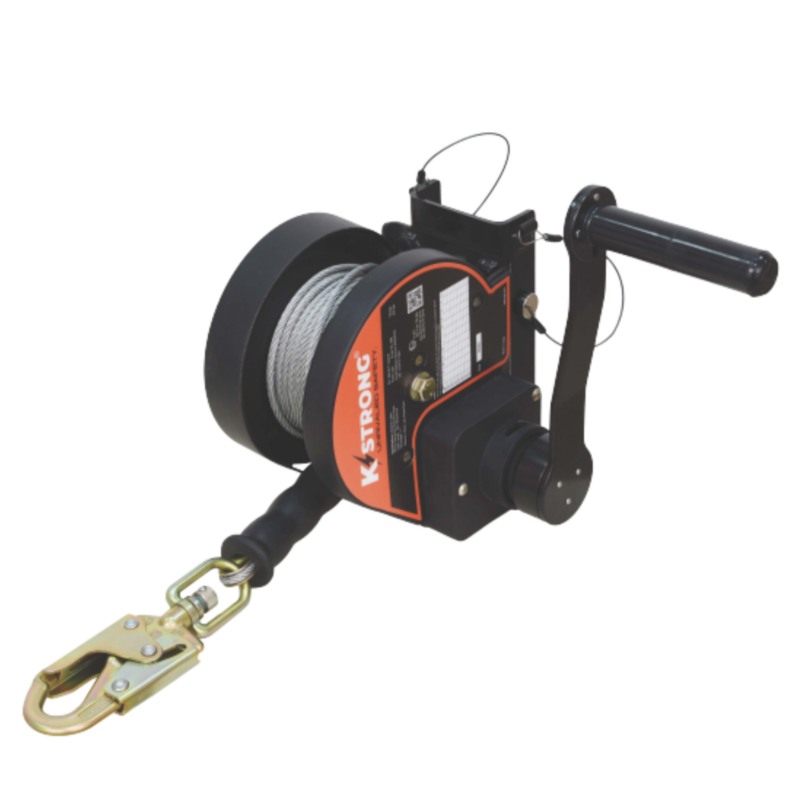

The KSTRONG AFT730042 / AFT730042SS are 20-meter Extreme Series Type B Winches designed for vertical lifting and lowering in rescue, confined space, and positioning applications.

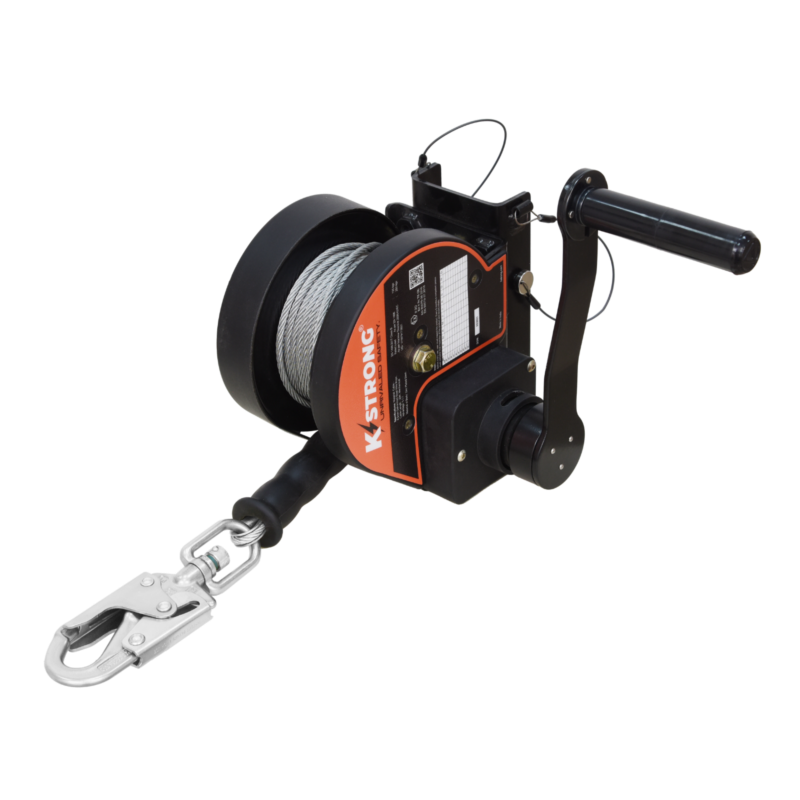

AFT730042 features a galvanized steel cable, while AFT730042SS uses stainless steel cable and hook for enhanced corrosion resistance.

Both models conform to EN 1496:2017 Class B and incorporate a secondary braking mechanism for added safety during use in demanding environments.

Brand KSTRONG UNRIVALED SAFETY
P/NAFT730042
P/NAFT730042(SS)

Specifications & Materials

  • Model: AFT730042 (Galvanized Cable) / AFT730042SS (Stainless Cable)
  • Cable Diameter: 4.8 mm
  • Winch Housing: Galvanized steel body with nylon molded cover
  • Hook: ANSI steel self-locking hook / Stainless steel for AFT730042SS
  • Weight: 11.49 kg (AFT730042) / 13.96 kg (AFT730042SS)

Certification & Safety Performance

  • EN 1496:2017 Class B compliant
  • Machine Directive 2006/42/EC
  • ANSI Z359.1-2007 (AFT730042SS only)
  • ATEX certified (explosion-proof)

Load & Comfort

  • Max Personal Load: 140 kg
  • Max Material Load: 250 kg
  • System Strength: 15kN (AFT730042), 16kN (AFT730042SS)

Design Highlights

  • Universal mounting bracket for quick installation with KSTRONG Tripods/Davits
  • Advanced Dual Load Advantage (DLA) gear system for ease of operation
  • Integrated secondary braking system for added safety
  • Recommended for use with fall arrest block for personal safety backup

Application Scenarios

  • Confined space operations
  • Rescue and material handling at height
  • Oil, gas, and mining environments
  • ATEX-rated hazardous locations
